Isolation Transformer

SPECIFICATIONS
The Isolation Transformer 3 maintains efficient power to operate even with the worst of power problems, providing superior dependability and realibility commercial/industrial environments in a small footprint

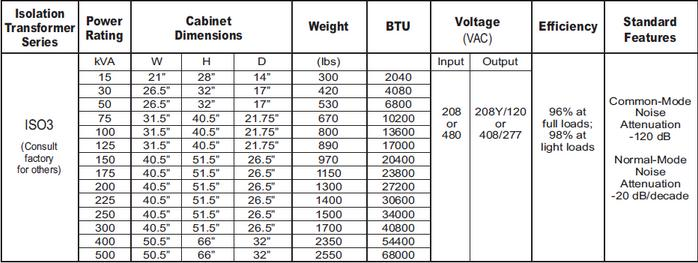

POWER RATING
15 kVA - 500 kVA three phase output unit uses the latest DSP/PWM technology to provide the most advanced performance and reliability features
INPUT
208 or 480 VAC input 50-60Hz
OUTPUT
208Y/120 or 480Y/277VAC
<200 nanoseconds response time
CODES
Listed to UL 924, meets NFPA 101, NFPA 70, NEC and OSHA standards.
PROTECTION
Provides overload, surge and undercurrent protection
Surge protection against load and surges as defined in ANSI/IEEE C62 45 category A and B.
DIAGNOSTIC AND MAINTENANCE
DSP/PWM technology and DSPM Watchdog Software provides complete self diagnostic capabilities and LED monitoring
Informative advanced Display and Alarms keep you in control of your emergency lighting environment 24/7
CABINET
Modular design enables flexible installation
Forced air cooling for maximum reliability
All systems are self contained.
INSTALLATION
Modular design and small footprint allow easy installation in electrical closet or other convenient locations.
Phone assisted factory start-up standard for all systems
Extended warranty available
SPECIAL APPLICATIONS
DSPM offers numerous UL 924 optional devices to meet unusual or difficult application parameters
ECM - Environment Circuit Module allows fixtures and lamps on the emergency circuit to be operated by normal switching and/or dimming devices in NON-emergency conditions
Dimming Panel Interface allows use with emergency lights controlled by common dimmer panel.
WARRANTY
1-Year full warranty on system electronics
System 1-year on site warranty labor with pDSPM phone assisted start up
5-year power train warranty
Maintenance contracts available
