Unitek UPS

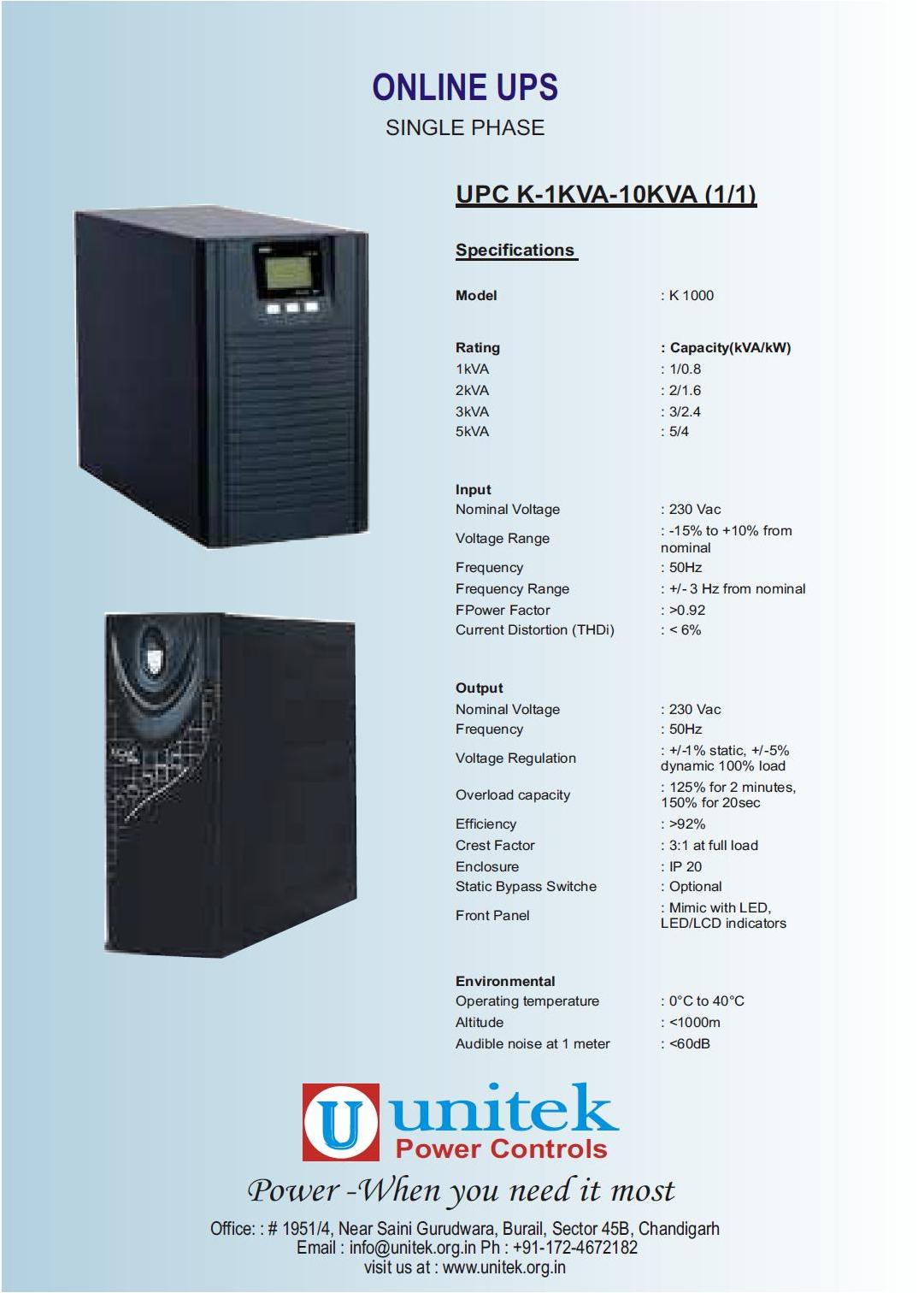

- UPC K-1KVA-10KVA (1/1)
- UPC K-3KVA-20KVA (3/1)
- UPC K-5KVA-60KVA (3/3)
- UPC I-Series 10KVA - 60 KVA
- PEGASUS Industrial UPS
| Model | : K 1000 |
| Rating | : Capacity(kVA/kW) |
| 1kVA | : 1/0.8 |
| 2kVA | : 2/1.6 |
| 3kVA | : 3/2.4 |
| 5kVA | : 5/4 |
| Input | |
| Nominal Voltage | : 230 Vac |
| Voltage Range | : -15% to +10% from nominal |
| Frequency | : 50Hz |
| Frequency Range | : +/- 3 Hz from nominal |
| FPower Factor | : >0.92 |
| Current Distortion (THDi) | : < 6% |
| Output | |
| Nominal Voltage | : 230 Vac |
| Frequency | : 50Hz |
| Voltage Regulation | : +/-1% static, +/-5% dynamic 100% load |
| Overload capacity | : 125% for 2 minutes, 150% for 20sec |
| Efficiency | : >92% |
| Crest Factor | : 3:1 at full load |
| Enclosure | : IP 20 |
| Static Bypass Switche | : Optional |
| Front Panel | : Mimic with LED, LED/LCD indicators |
| Environmental | |
| Operating temperature | : 0°C to 40°C |
| Altitude | : <1000m |
| Audible noise at 1 meter | : <60dB |
Features
Transformer-less
High efficiency
Low footprint
SNMP
